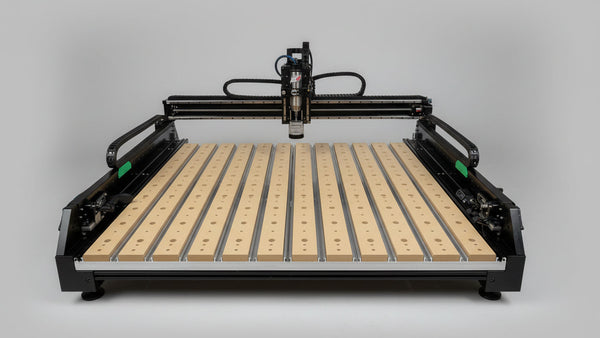

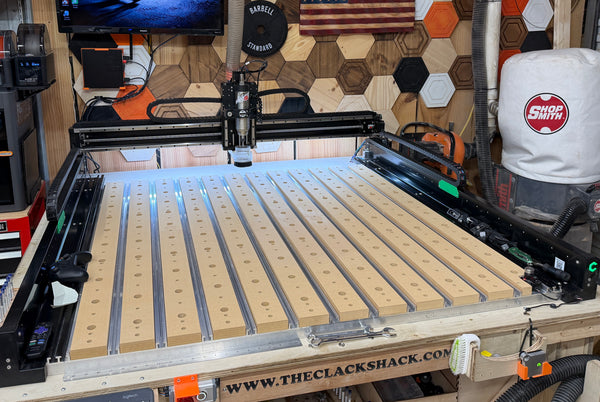

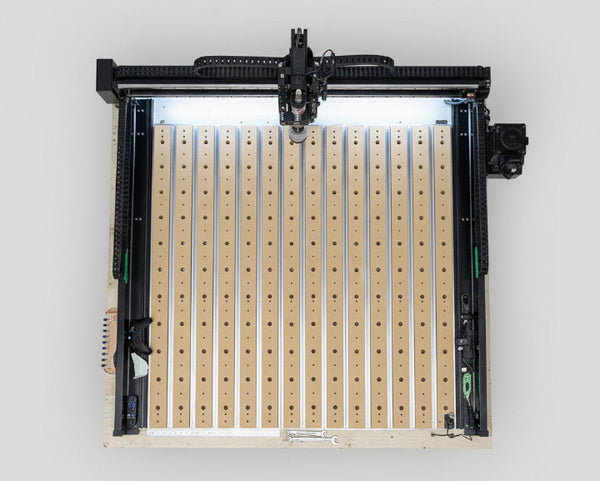

Shapeoko 5 Pro 4x4 Waste Board Kit
Upgrade your Shapeoko 5 Pro 4x4 with a durable, resurfacing-friendly waste board system designed for real-world CNC use.
Manufactured from 1" ultra-light MDF, these replacement slats provide additional resurfacing life compared to the factory waste board while maintaining compatibility with your existing machine hardware.
Available in two configurations: Stock and Upgraded.
Choose Your Configuration
Stock Version
A direct replacement for the factory Shapeoko 5 Pro 4x4 waste board slats.
Manufactured from upgraded 1" ultra-light MDF, these slats provide additional resurfacing life while maintaining compatibility with your existing hardware and setup.
The only difference from the factory design is our two-piece slat construction, which reduces shipping costs while still assembling into a full-length slat using a precision-cut friction-fit puzzle joint.
Features:
Direct replacement for factory slats
Made from 1" ultra-light MDF
Increased resurfacing life
Maintains stock functionality and compatibility
Can be used as-is or customized with your own dog holes, threaded inserts, fences, and fixtures
Two-piece design for reduced shipping costs
Best For: Users looking for a simple replacement waste board or a blank canvas for their own custom workholding system.
Upgraded Version
Everything included in the Stock Version, plus a fully featured workholding system designed to improve efficiency and repeatability.

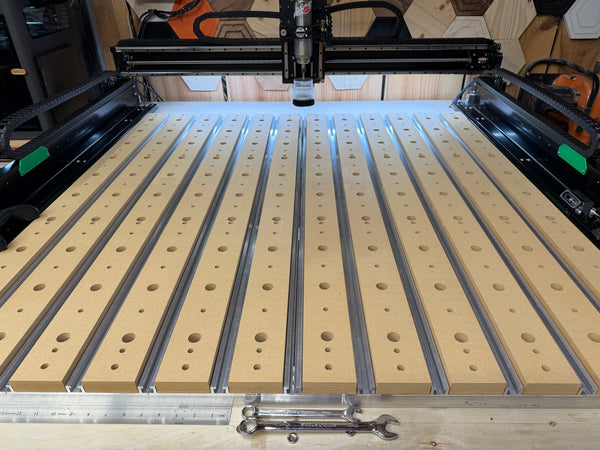

This version comes pre-machined with our popular dog hole and threaded insert layout, allowing you to immediately begin using clamps, fixtures, fences, and workholding accessories without additional setup.
Features:
Precision-machined 20mm dog hole grid (10 per slat)
Pre-installed threaded inserts (11 per slat)
Ready to use out of the box by connecting two halves of each slat
Compatible with a wide variety of clamps and workholding accessories
Faster project setup and improved repeatability
Eliminates the time required to drill and install your own inserts
Best For: Users who want a fully featured waste board system ready to work from day one.
Innovative Two-Piece Slat Design
A traditional Shapeoko 5 Pro 4x4 waste board requires slats nearly 49" long, which can significantly increase shipping costs. Plus, this dimension is typically not achievable to be cut on a standard 4'x4' CNC.

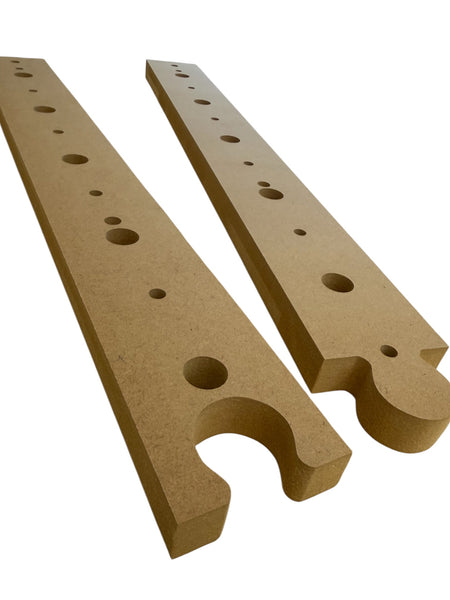

To solve this problem, each slat is manufactured in two sections and joined using a precision-cut friction-fit puzzle joint.
Simply slide the two halves together during assembly to create a full-length slat.
Benefits:
Lower shipping costs (no oversized package)
Easier handling during installation
Reduced risk of shipping damage
Maintains full factory-length functionality once assembled
Why 1" Ultra-Light MDF?
The factory waste board utilizes 3/4" material. By upgrading to 1" ultra-light MDF, you gain additional material thickness that can be resurfaced over the life of the waste board.
Benefits Include:
More resurfacing opportunities
Longer overall service life
Excellent dimensional stability
Reduced weight compared to standard MDF
Lower shipping costs without sacrificing strength
What's Included
Stock Version
Complete set of replacement waste board slats (12 total)
Precision-cut friction-fit puzzle joints
Ready for installation or customization
Upgraded Version
Complete set of replacement waste board slats (12 total)
Precision-machined dog hole layout (10 per slat)
Pre-installed threaded inserts (11 per slat)
Precision-cut friction-fit puzzle joints
Ready for immediate use
Compatibility
Compatible With:
Not Compatible With:
-
Shapeoko 5 Pro 2x2
-
Shapeoko 5 Pro 2x4
-
Shapeoko 4
-
HDM
-
Other CNC machines
